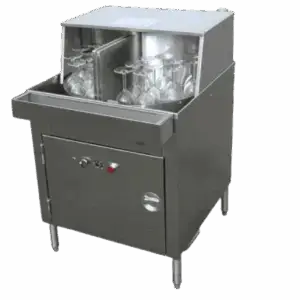

American Dish Service ASQ II Rotary Glass Washer

American Dish Service ASQ II Rotary Glass Washer

$8,998.00

Lease Starting at $355.00 per month

Lease starting at $355.00 per month

Lease starting at $355 per month

  • Rotary Glass Washer designed and built in the United States of America by American Dish Service.
  • High quality rotary glass washer is perfect for multiple applications including: bars, restaurants, cafes, social clubs, and more.
  • Manually actuated rotary table decreases energy and water use.
  • Ideal for heavy duty and moderate use applications.
  • The ASQ II incorporates a built in storage cabinet will hide your chemicals from view and protect them from contamination.



spec sheet

Tag:

Have a question?

Call us: 1-800-665-0523

Email us: info@rodwaysupply.ca

  • Rotary Glass Washer designed and built in the United States of America by American Dish Service.
  • High quality rotary glass washer is perfect for multiple applications including: bars, restaurants, cafes, social clubs, and more.
  • Manually actuated rotary table decreases energy and water use.
  • Ideal for heavy duty and moderate use applications.
  • The ASQ II incorporates a built in storage cabinet will hide your chemicals from view and protect them from contamination.



spec sheet

Product Description

American Dish Service ASQ II Rotary Glass Washer

  • Full load washing – saves power, water, and chemicals.
  • Fast – only 75 seconds per cycle.
  • Rotating spray arm – provides outstanding results.
  • Divided carousel, creates a washing chamber that cleans with a recirculating, high-volume water spray.
  • Load, unload & wash simultaneously.
  • Manual Turn Carousel – increases energy efficiency by eliminating being forced to wash one glass at a time.
  • Sustainer Heater – maintains tank temperature.
  • Built-in Chemical Storage (One Gallon Containers) with automated chemical pumps.
  • Pre-Plumbed Dump Sink and Stainless Steel Drain.
  • Glassware Crossarm with Standard Spray Arm Bearing and Bayonet Pin release.
  • Separate Stainless Steel Wash and Drain Pumps for Quieter Operation.
  • It offers the cleaning action of a dish machine in a carousel system. The carousel is divided into three positions by stainless steel panels. These panels isolate each compartment, controlling the water and washing action of the rotating spray.
  • With the push of the lever, the manual carousel easily rotates and locks into the next postition. While the glasswasher does the cleaning, the bartender can unload spot-free glasses and load the glassware to be washed, efficiently cleaning full loads.
  • Rotary Glass Washer



Model ASQ II
Rated Capacities 34 Loads per hour
Cycle time Wash time: 45 seconds

Rinse time: 15 seconds

Dwell: 15 seconds

Total Cycle time: 75 seconds

Motor Horsepower Wash: 1/3 HP

Drain: 1/6 HP

Water Consumption 1.27 Gals per cycle or

4.8 Liters per cycle

Water Temperature 120°F / 49°C
Dimensions (W x D x H) 25.5” x 29.8” x 38.5”
Shipping Weight 288 lbs. / 130 kg.
